Mac Video Ports |  |
|
The following images are video display connectors found on Mac computers. A short description follows each picture.
|
|
|
 ADC CONNECTOR F
This connector has 3 rows of 10 holes.
|
|
|

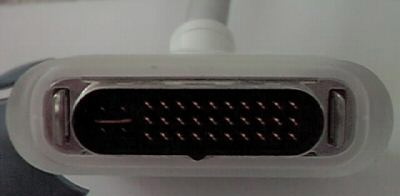

 ADC LCD Cable
This connector has 3 rows of 10 pins.
This is the conector on the end of the cable from the 15 inch LCD Flat screen.
|
|
|

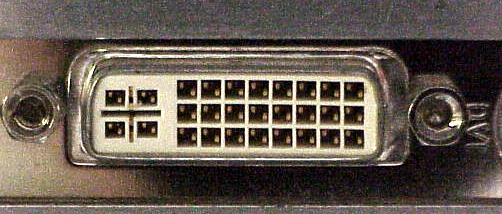

 DVI
This connector has 3 rows of 8 holes.
|
|
|

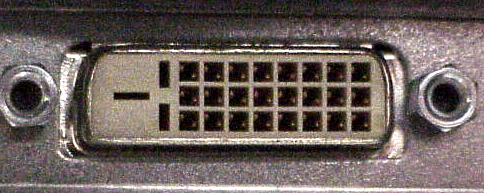

 DVI-D
This connector has 3 rows of 8 holes.
|
|
|
 VGA
This connector has 3 rows of 5 holes.
The middle row is staggered to the left.
|
|
|
These images were taken off of the internet. When better pictures become available, these will be replaced along with more details.
